IEC 60068 0.2J Spring Impact Hammer

Name: IEC 60068 02J Spring Impact Hammer
Brand: Lonroy
Price: 1 USD

China IEC 60068 0.2J Spring Impact Hammer wholesale

Brand Name : Lonroy

Place of Origin : China

Model Number : 0.2J

MOQ : 1

Price : Negotaible

Length : 211mm

Weight : 1250g

OD : 50mm

Hammer Weight : 60g

Hammer Radius : 10mm

Release Force : <10N

Impact Components : 250g

Hammer Material : Polyethylene imine

Impact Energy 0.14J : ±0.014J

Impact Energy 0.20J : ±0.020J

Impact Energy 0.35J : ±0.03J

Impact Energy 0.50J : ±0.04J

Impact Energy 0.70J : ±0.05J

Impact Energy 1.00J : ±0.05J

Impact Energy 1.50J : ±0.07J

Certification : ISO ASTM CE

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

IEC 60068 0.2J Spring Impact Hammer

Introduction:
IEC 60068-2-75 Spring Impact hammer is used to check the durability of luminaire merchanical strength and enclosures for electrical appliance or other electronic products.
The Impact Hammer simulates the mechanical impact to test household and similar electrical appliances shell, lever, handle, knobs,light and other shell to withstand mechanical shocks.

IEC 60068 0.2J Spring Impact Hammer

We also provide:
1. CNAS&ILAC certificate
2. IK standard spring impact hammer
3. Customized energy
4. Spring impact hammer calibrator and calibration apparatus

Length	211mm
Weight	1250g
OD	50mm
Hammer Weight	60g
Hammer Radius	10mm
The Release Force Of Impact	<10N
Impact Components	Including the hit ball handle the hammer, weight 250g
Hammer head is made of white polyethylene imine
Single Impact Energy	Error
0.14J	±0.014J
0.20J	±0.020J
0.35J	±0.03J
0.50J	±0.04J
0.70J	±0.05J
1.00J	±0.05J
1.50J	±0.07J
2.00J	±0.08J

Product Tags:

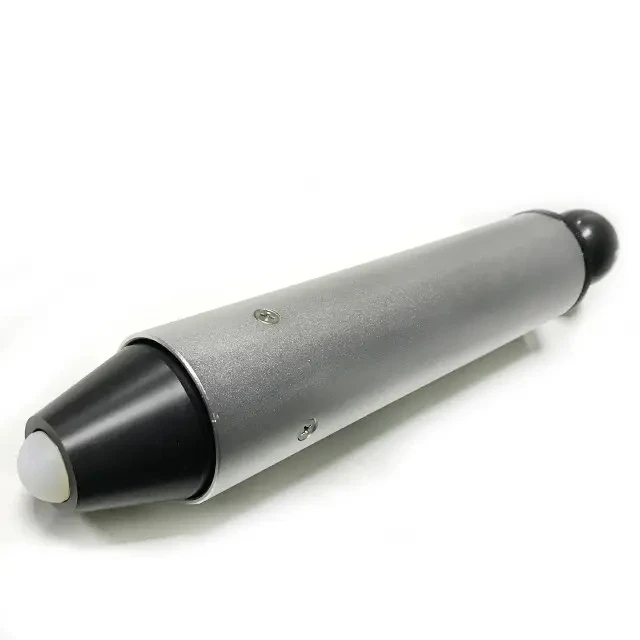

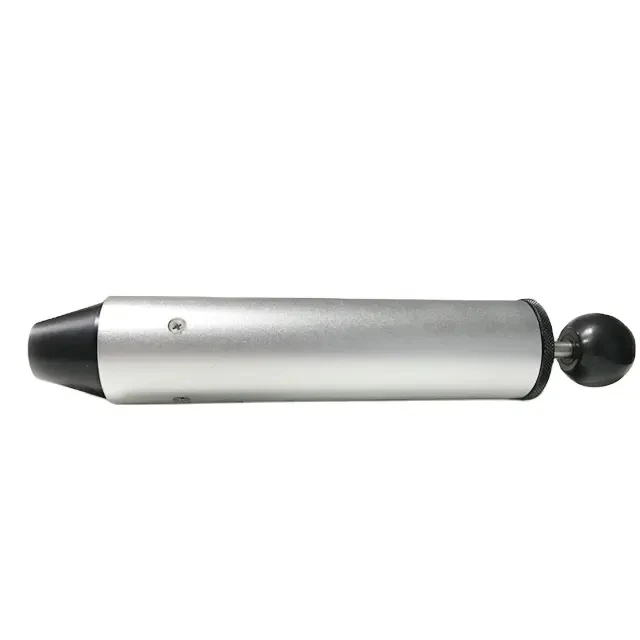

IEC 60068 0.2J Spring Impact Hammer Images
